Set Up Your Export Connection for Context Studio
To export a Context Studio package, Coactive needs somewhere to send the file. A Context Studio export connection links your S3 bucket to Coactive so your package JSONs land in your storage — the locked first export for every package, plus every delta for a recurring package.
You need this connection before you can export. Set it up once and every export (fixed or recurring) drops straight to your bucket.
Connections are org-wide and managed by Organization Admins — the Settings menu is only visible to admins. If you don’t see it, ask an admin on your team.
What this enables
Section titled “What this enables”- Exporting a package’s JSON directly to your own S3 bucket
- For recurring packages, automatic delta drops to that same bucket on every run
- A confirmed Full export path shown in the Export Bundle step, so you always know where files are going
Create the connection in the UI

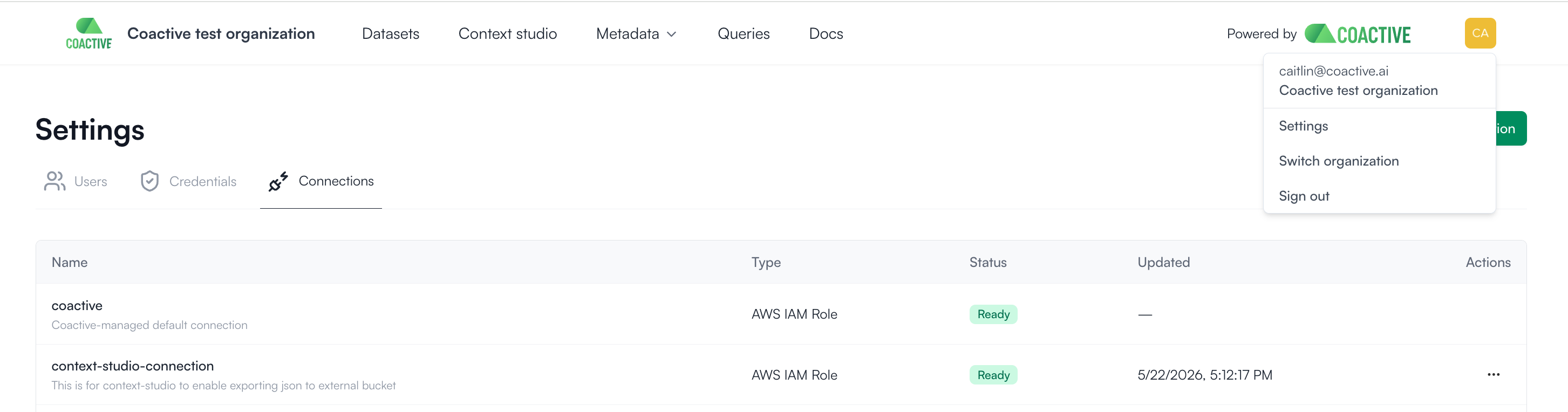

Section titled “Create the connection in the UI”- Open Profile Menu → Settings → Connections.

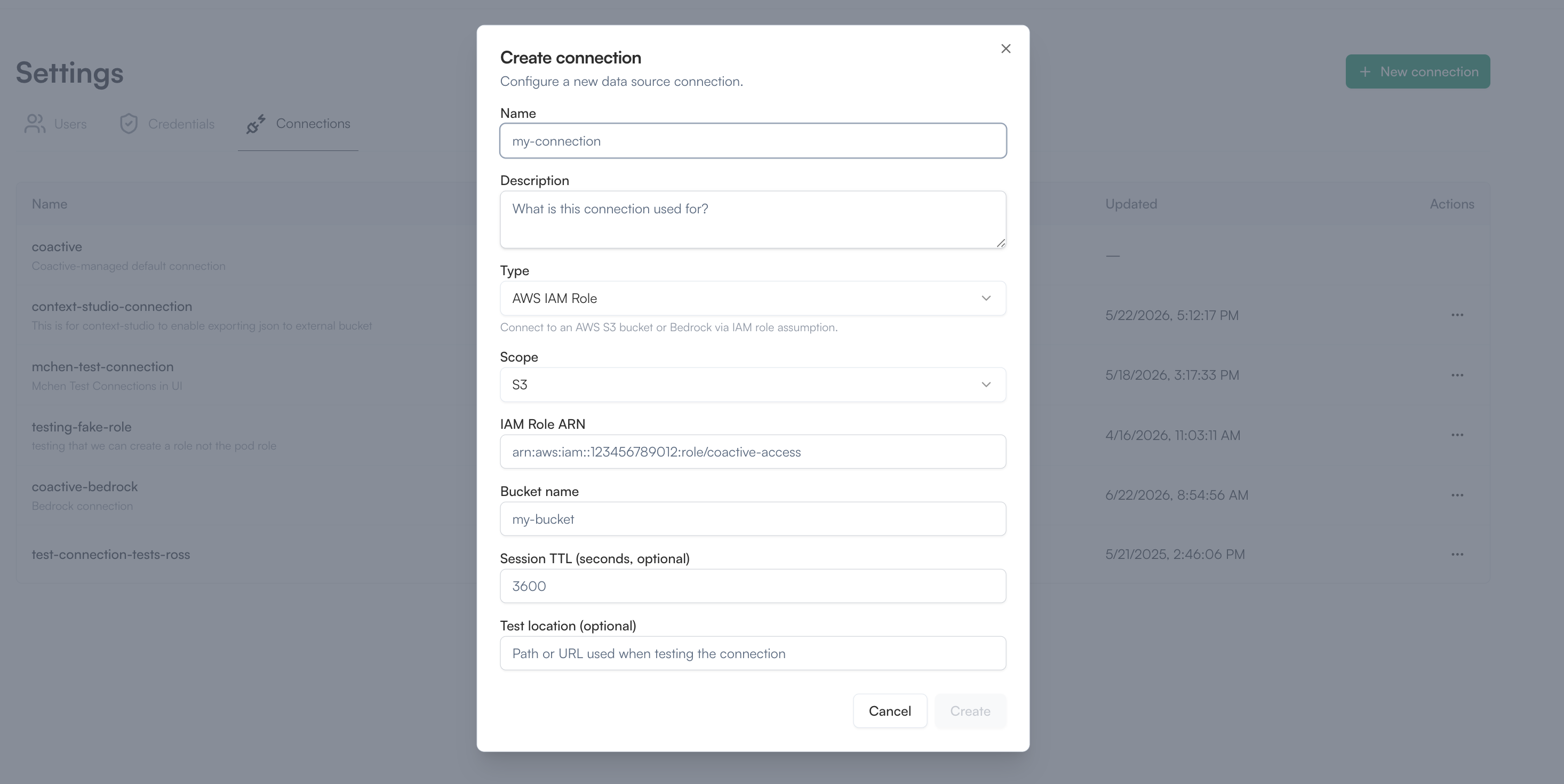

- Click New connection and choose AWS IAM Role, then the S3 scope.
- Fill in the fields. Here’s an example of what a Context Studio export connection looks like:
| Field | Example | Notes |
|---|---|---|
| Name | context-studio-connection | A unique name for the connection |
| Description | For Context Studio exporting package JSONs | Optional, but helps your team know what it’s for |
| Type | AWS IAM Role | Connects to an AWS S3 bucket via IAM role assumption |
| Scope | S3 | |
| IAM Role ARN | arn:aws:iam::123456789012:role/your-name | The role from your AWS account, with write access to the bucket |
| Bucket name | my-bucket | Your bucket — no s3:// prefix (see below) |
| Session TTL (optional) | 3600 | Defaults to 3600 seconds (1 hour) |
| Test location (optional) | my-bucket/test-file.json | Point to a specific file, not a folder — required to activate (see below) |
- Click Create.
When you enter the bucket name / path, do not include the s3:// prefix. Enter it as my-bucket — not s3://my-bucket. Including s3:// will cause the connection to fail to save.
For the AWS-side setup (creating the IAM role or bucket policy), see Cloud Storage Access (Beta).
After a connection is created, only its Name and Description can be edited. The scope, IAM Role ARN, bucket name, and TTL are read-only and to change any of those, please delete the connection and create a new one.
Activate it with a test file
Section titled “Activate it with a test file”A new connection stays in PENDING until it tests successfully against a real file — it can’t be used for exports until then.
- The Test location must point to a specific file in your bucket (e.g.,

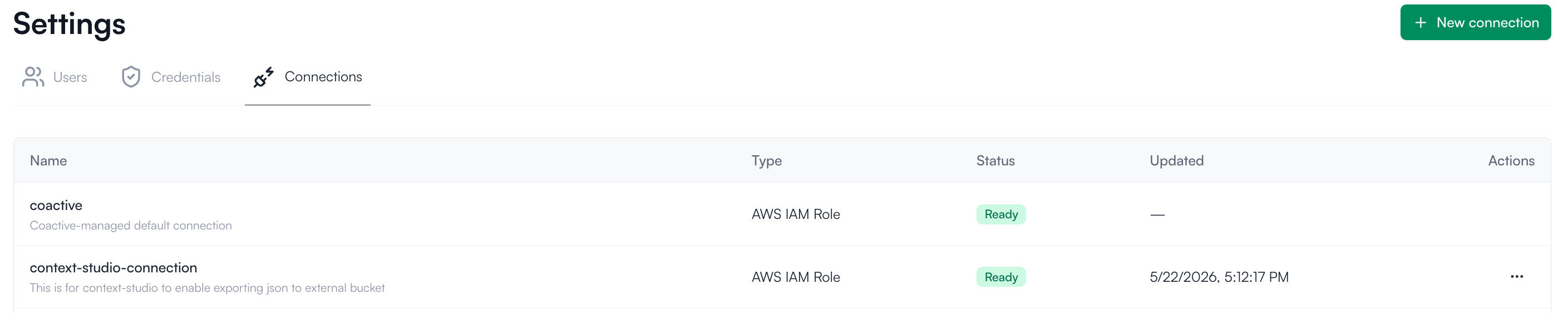

my-bucket/test-file.json), not a folder. - Once the test passes, the connection moves to READY and is available in Context Studio.
Export your package
Section titled “Export your package”With a READY connection in place, the export flow uses it automatically:
- In Context Studio, click Export Bundle and choose Fixed or Recurring, then complete the flow to export.
- Your JSON is written to the S3 location on your connection. For a recurring package, the first JSON drops immediately and every later delta auto-exports to the same location on each run — no manual trigger.

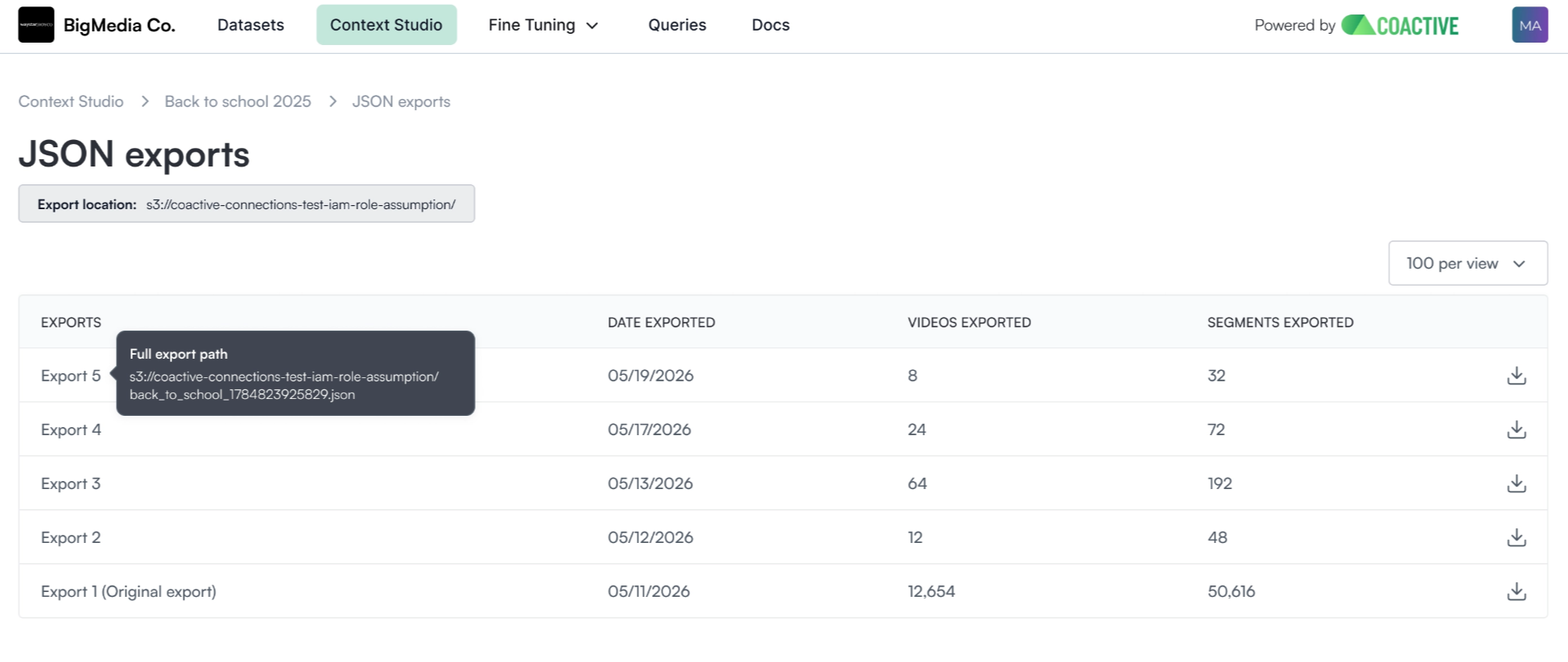

You can confirm where files are going on the package’s JSON exports page: the Export location (your connection’s S3 path) is shown at the top, and hovering any export row reveals its Full export path — the exact file, e.g. s3://my-bucket/back_to_school_1784823925829.json.
See How to Build a Package for the full export walkthrough and Recurring Packages for recurring behavior.
